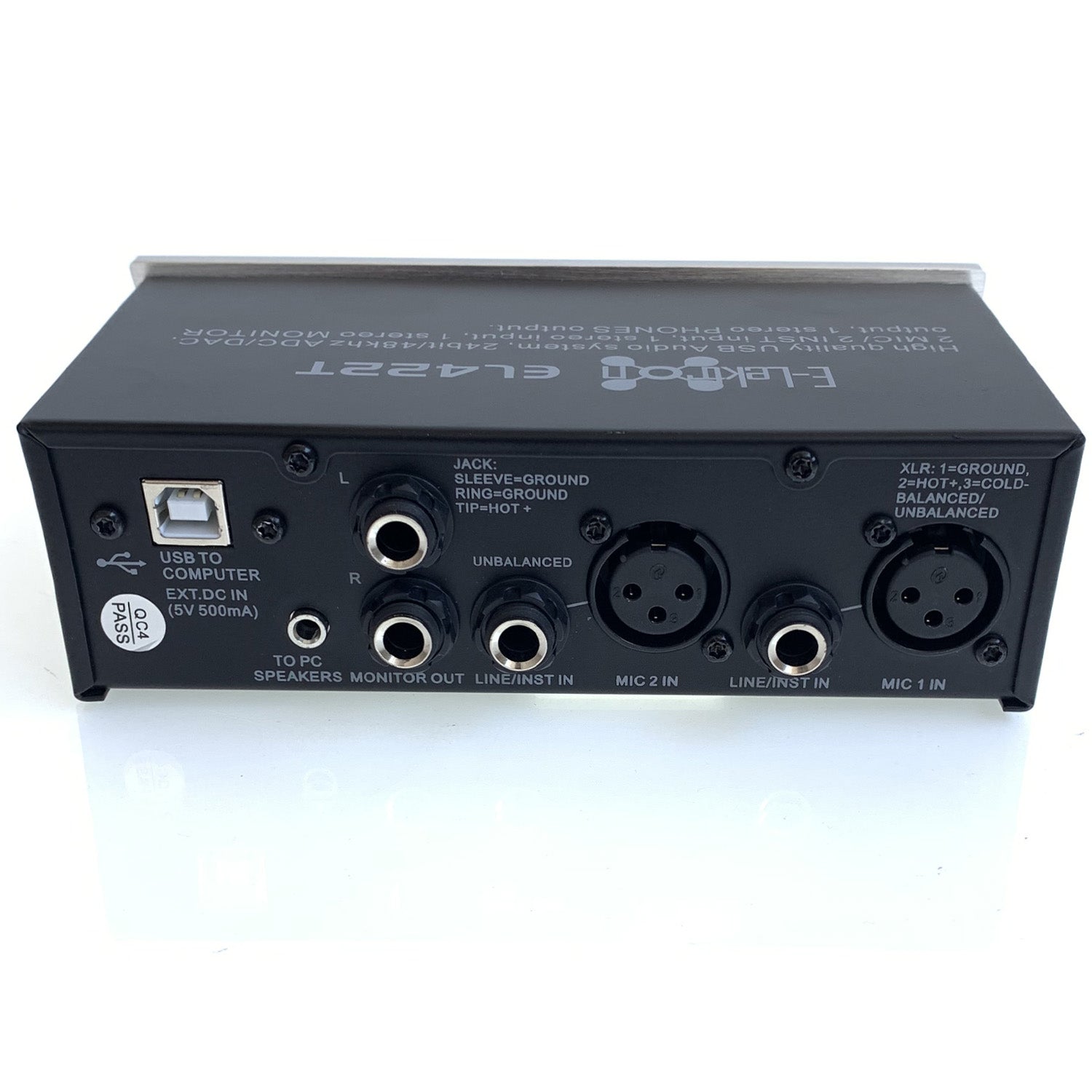

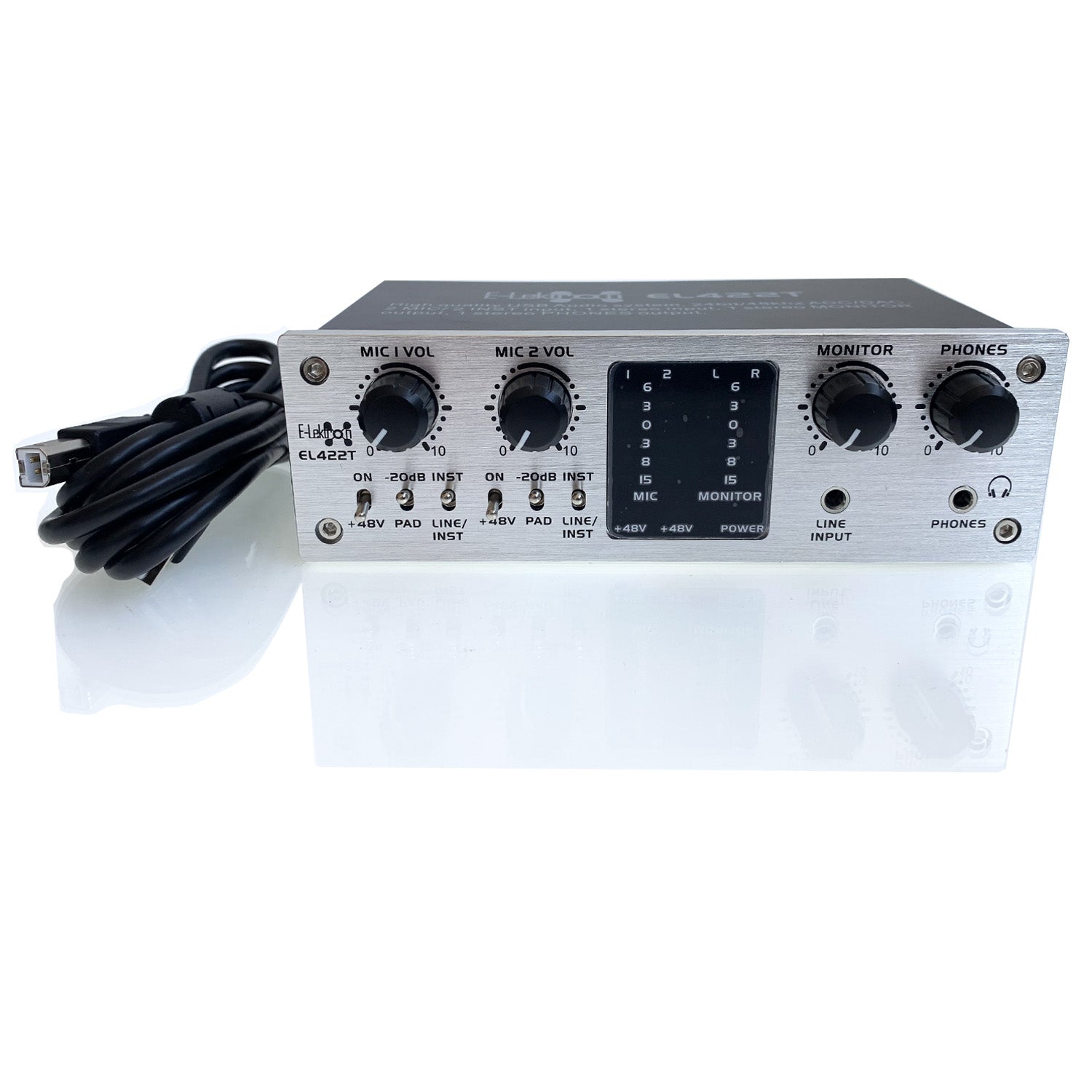

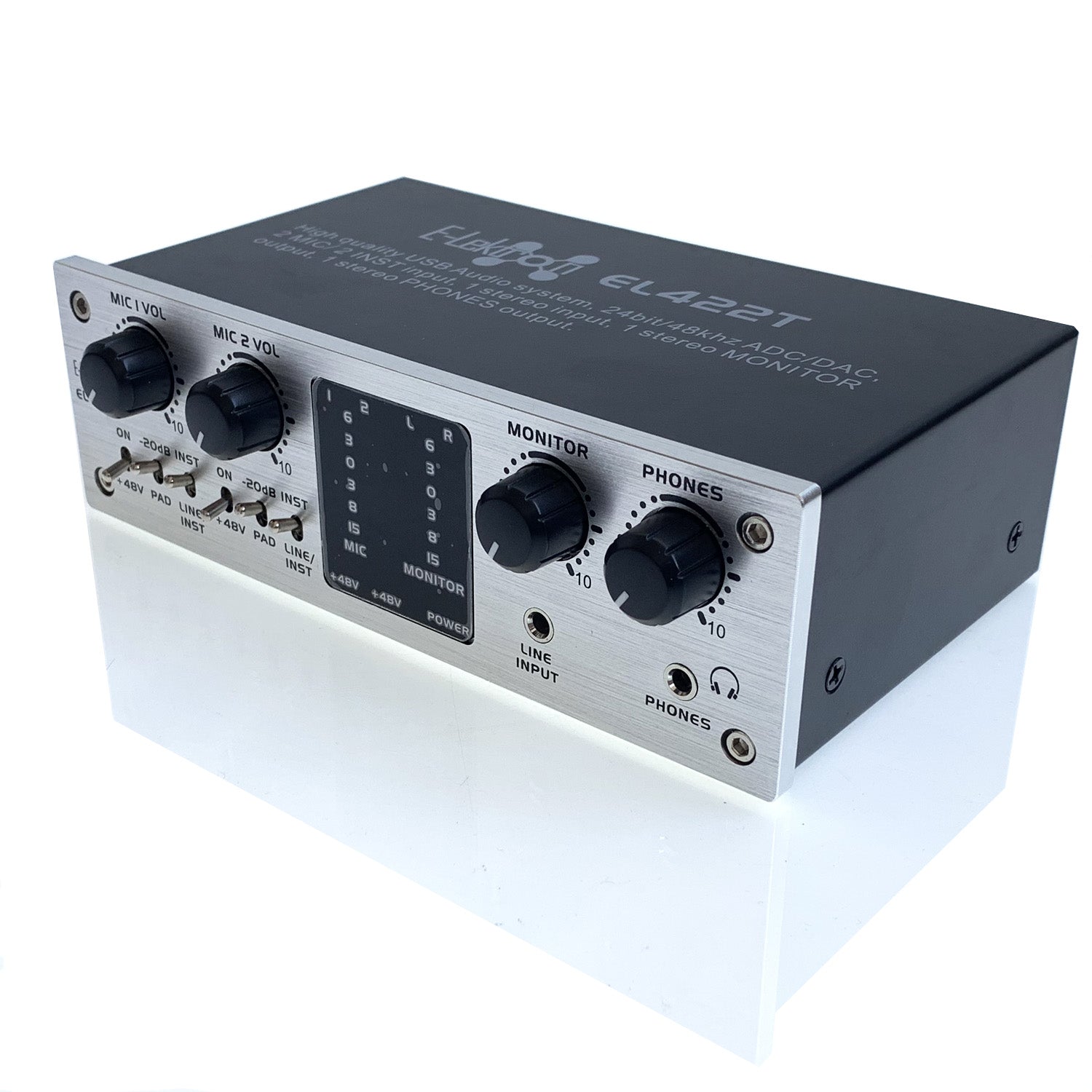

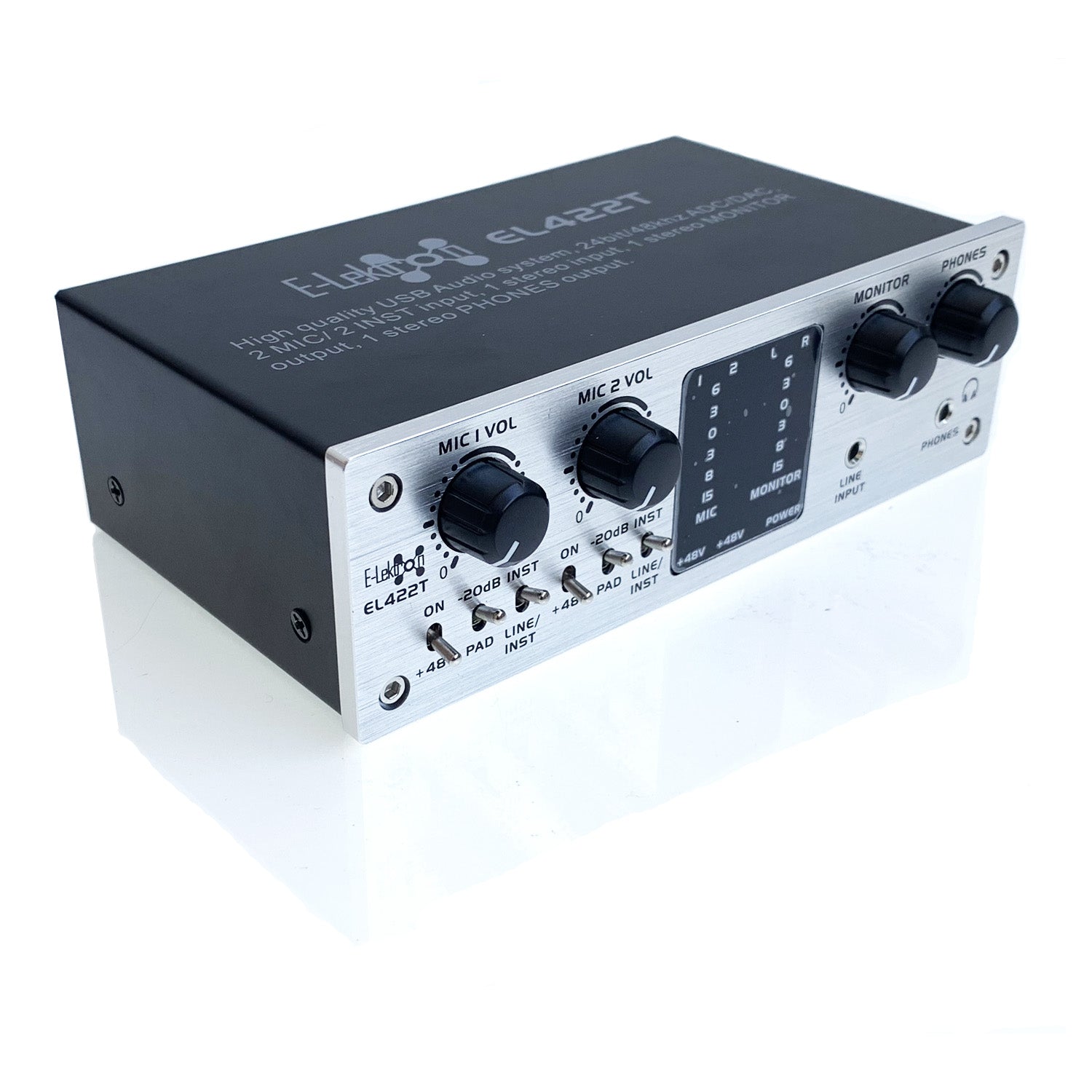

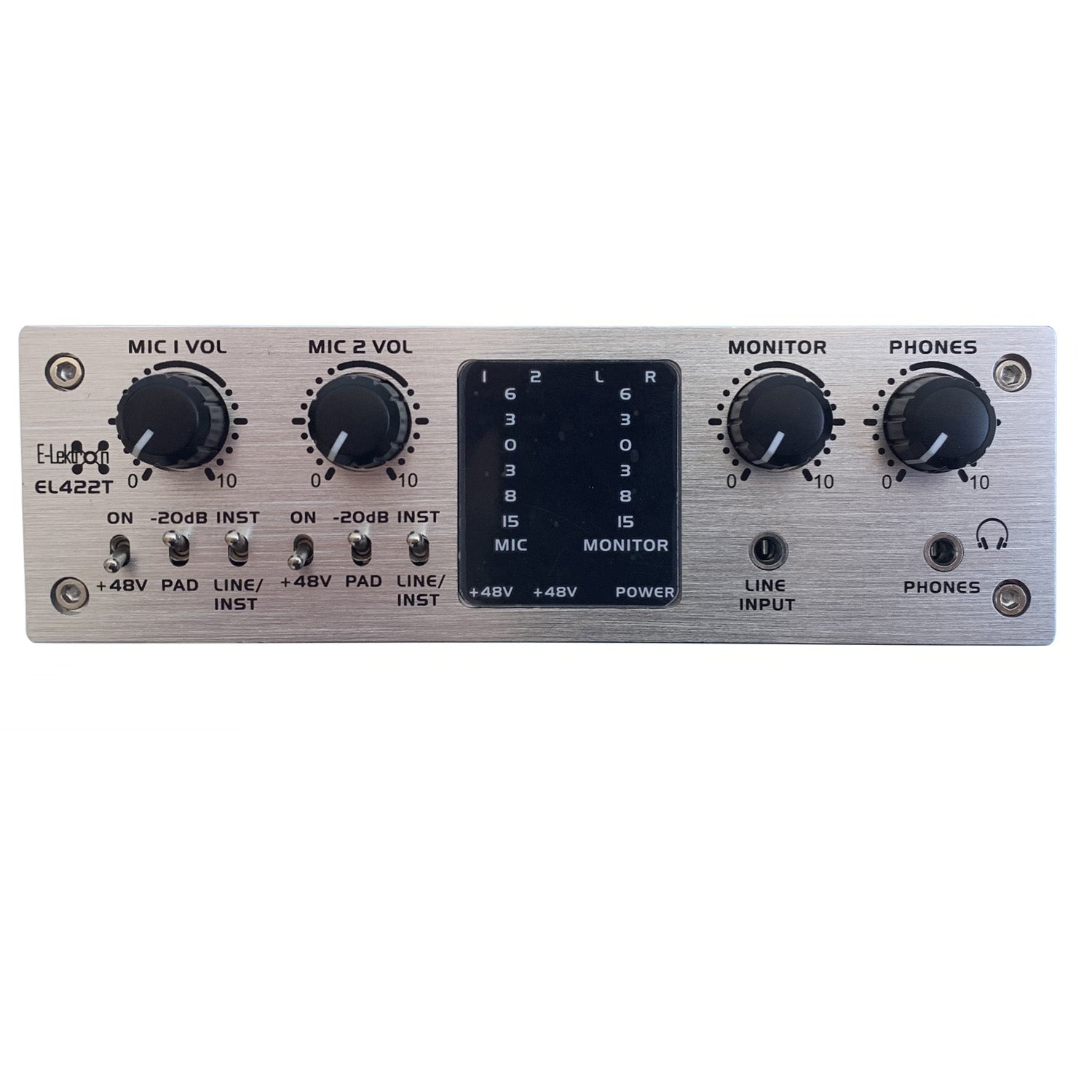

E-lektron USB Audio Interface 4X2 24bit 96kHz audio resolution

Start recording and creating original music with a 422T USB 96 audio interface. This compact, convenient, and super-affordable 4-channel USB 2.0 audio interface is an ideal option for singer/songwriters and any creative artists looking for an easy way to record at home or on the road. Take advantage of the award-winning sound of a pair of top-quality preamps to bring your vocals, guitar, and other instruments to life, all captured in up to 24-bit/96kHz professional digital audio resolution.

Characteristics:

• USB Audio System
• High quality 24 bit USB Audio System
• 2 MIC/ 2 INST input
• 1 Stereo input
• 1 Stereo MONITOR output
• 1 PHONES output

Technical Specifications:

Mic Line

• GAIN: -14-040 dB
• PAD: 20 dB
• Phantom Power: +48V with LED indicator
• Impedence: Switch
• Metering: 6 point LED

USB Audio

• Features: Stereo Input / Output
• USB Audio Class: 2.0 compliant
• Sampling Frequency: Max 96 kHz
• Bit Depth: 24-bit
• USB connector: Type B

General Specifications

• Level Meter: 2×6 point LED meter
• Max output level: 3 Vrms
• Frequency response: ±0.5 dB, 20-20000Hz
• Dynamic range: 102 dB
• THD+N @ 1 KHz: ±0.03%
• Stereo crosstalk: 92 dB
• Power Requirements: DC 5 V, 500 mA
• Power Consumption: Max. 2.5 W
• Dimensions (WxHxD): 160 mm x 50 mm x 92 mm
• Net Weight: 0.64 kg

Package of Delivery:

• Packaging Size: 16cm X 10cm X 5cm
• Packaging Weight: 0.64kg
